DH-S900 Temperature measurement face recognition terminalDH-S900 Temperature measurement face recognition terminalDH-S900 Temperature measurement face recognition terminalDH-S900 Temperature measurement face recognition terminal

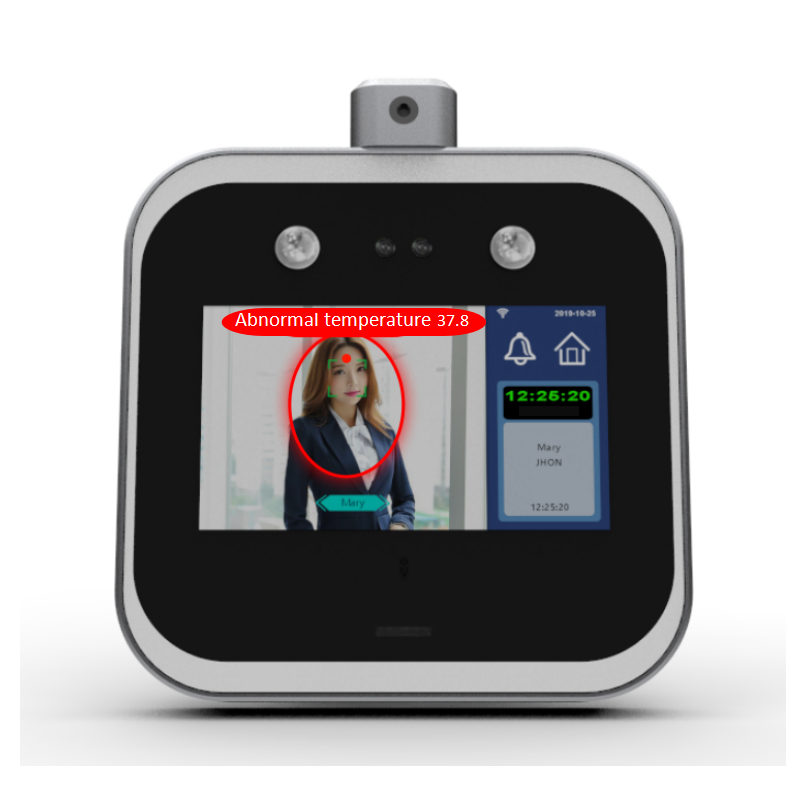

DH-S900 Temperature measurement face recognition terminal

  • Exterior:5.0 inch capacitive touch screen;
  • Verification match: Dynamic face recognition, password, RFID Card
  • Storage capacity: Faces: 3000, Card: 3000, Password: 3000
  • Communication method: TCP/IP, Wifi, U disk
  • Body temperature measurement error: 0.3 ~ 0.5 ℃
  • The best distance for temperature measurement: 0.5 ~ 0.6 meters
  • Equipment work can adapt to ambient temperature: -20 ℃ ~ 65 ℃
  • Temperature sensor can measure object temperature range: -40 ℃ ~ 85 ℃
  • All metal body, Rain proof,  Dustproof

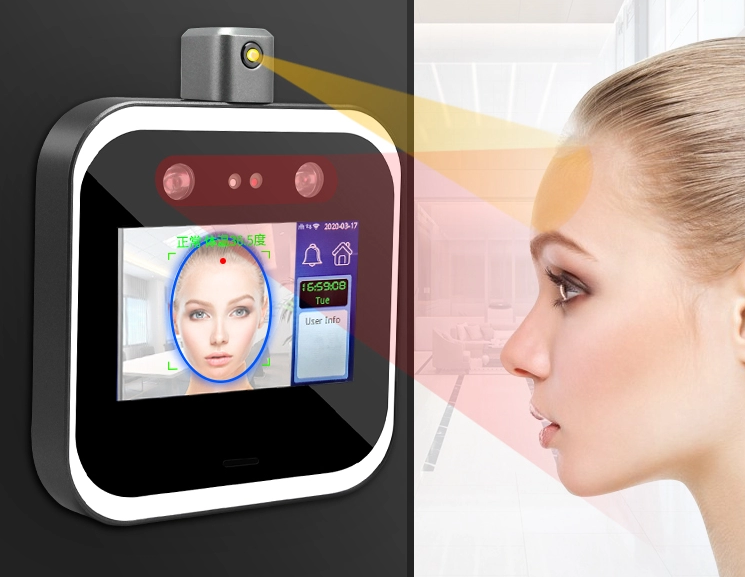

The temperature measurement dynamic facerecognition is an AI biometric technology that uses the infrared sensor tomeasure and record the body temperature in real time based on the facialfeature information of the person. This product is based on a multi-taskcascaded convolutional neural network face algorithm Technology to effectivelyextract, identify and compare human facial features, support face recognitionby wearing a mask and brush, and measure body temperature, which is widelyused.

Accesscontrol and attendance of office buildings, communities, parks, campuses andother places.


[Feature]

1、 Visible light +infrared light binocular live detection and recognition to prevent fraud onmobile phone photos and videos

2、 Support online photo importor photo registration, face registration directly on the touch screen, u diskimport photo registration face

3、 Support wearing facemask to register face, wearing face mask to brush face recognition

4、 Multipleauthentication modes: face, password, credit card (optional) and other modes

5、 Powerful accesscontrol functions and rich access control input and output interfaces

6、 Conventionaltemperature measurement mode: wear a mask to register, open the door when thetemperature is normal when you brush your face, and do not open the door if thealarm is exceeded.

7、 Stranger temperaturemeasurement: do not register the face, open the door when the temperature isnormal when brushing the face, do not open the door if the alarm is exceeded,and save the temperature measurement flow

8、 The temperaturemeasurement function is turned off at the end of the epidemic, which can beused for dynamic face access control attendance

9、 Alarm temperature canbe customized

10. Voiceprompt "normal body temperature" when body temperature is normal,voice abnormal "body temperature abnormality" when body temperatureis abnormal

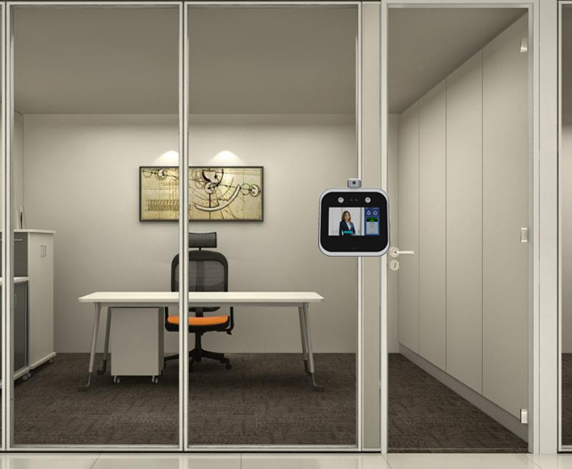

Temperaturemeasurement face access control scene:

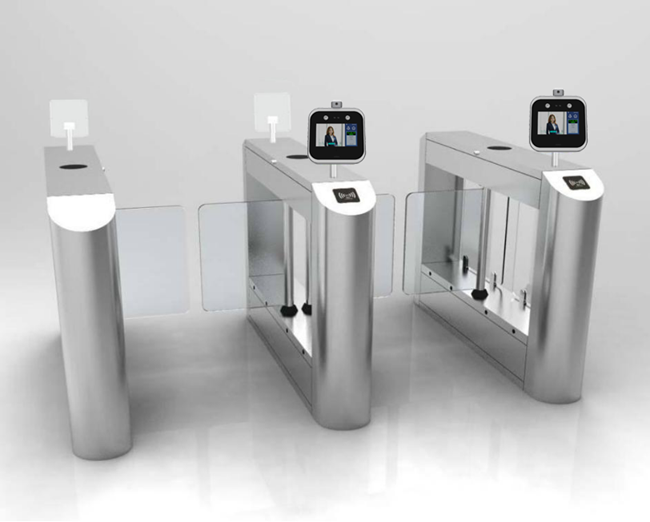

Temperaturemeasurement face channel scene:


【Specifications】

Exterior

5.0 inch capacitive touch screen 854 * 480

Touchscreen virtual keys ,

All metal body, Rain proof,  Dustproof

Technology platform

 Industrial-grade linux intelligent operating system

4 core 1.2g

Verification match

Dynamic face recognition verification, password verification, face+ ID Card+password verification, (customizable IC swipe)

Running memory

RAM memory 4GBit DDR3, Storage capacity 32GBit.

storage capacity

Faces: 3000 , Card:3000 ,  Password:3000

Record: 1 million

communication method

U disk upload and download data

Standard configuration: TCP / IP wired communication, and

wifi wireless communication

Attendance report

u disk export the temperature record details and attendance statistics report

Computer software collects data through network connected devices

Other parameters

Language: English

Rejection rate (frr): <= 0.1%

False acceptance rate (far): <= 0.0001%

Recognition mode: 1: 1, 1: n

Matching speed: the fastest 0.2 seconds, pure dynamic face recognition: 0.5-3 meters, enable live detection 0.5-1.5 meters

Support name display and built-in bell

Professional access control functions: tamper alarm, door open alarm, forced door open alarm, alarm linkage and output, a group of door open signals, time zone authority control, personnel authority control, holiday authority control, external access control read head, Wiegand 26/34 input

Power: 12v / 1a

Body temperature monitoring

Body temperature display accuracy: The minimum unit value of body temperature is 0.1 ℃
Body temperature measurement error: 0.3 ~ 0.5 ℃
The best distance for temperature measurement: 0.5 ~ 0.6 meters

Equipment work can adapt to ambient temperature: -20 ℃ ~ 65 ℃
Temperature sensor can measure object temperature range: -40 ℃ ~ 85 ℃

Normal mode: first register the face, brush the face to measure the temperature, the alarm exceeds the standard, for the place of fixed personnel
Stranger mode: no face registration, face temperature measurement, alarm exceeding the standard, used in places where people are not fixed

weight

Gross weight 1100 g  ,Net weight 450 g

Equipment size

174*152*22mm
