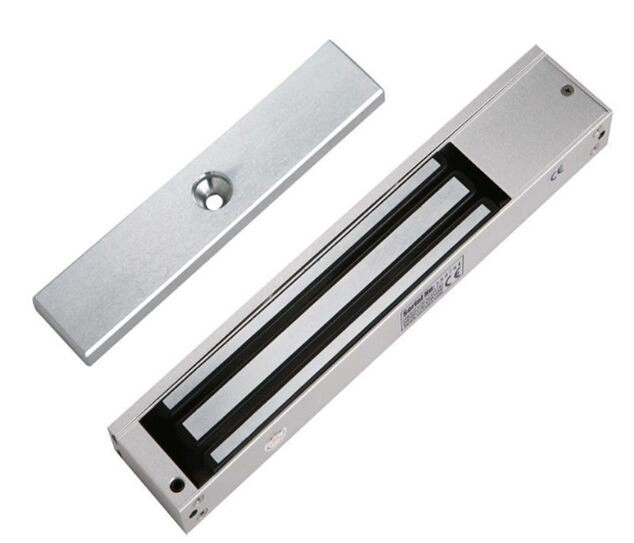

12V 24V 280kg 600lbs electric magnetic door lock12V 24V 280kg 600lbs electric magnetic door lock

12V 24V 280kg 600lbs electric magnetic door lock

  • Holding Force:280kg(600Lbs)
  • Voltage: 12VDC/24VDC
  • Current Draw: 12V/100mA
  • Suitable for: File Cabinet ,Display Cabinet
  • Surface Temp: ≤+20°C
  • Operating Temp: 10~+55°C(14-131F)
  • Suitable Humidity:  0~90%(non-condensing)
  • Finishes for Shell: Anodized aluminum
  • Finishes for Magnetic: Zinc
  • Finishes for Armature: Zinc

12V/24V 280kg /600lbs electric magnetic door lock

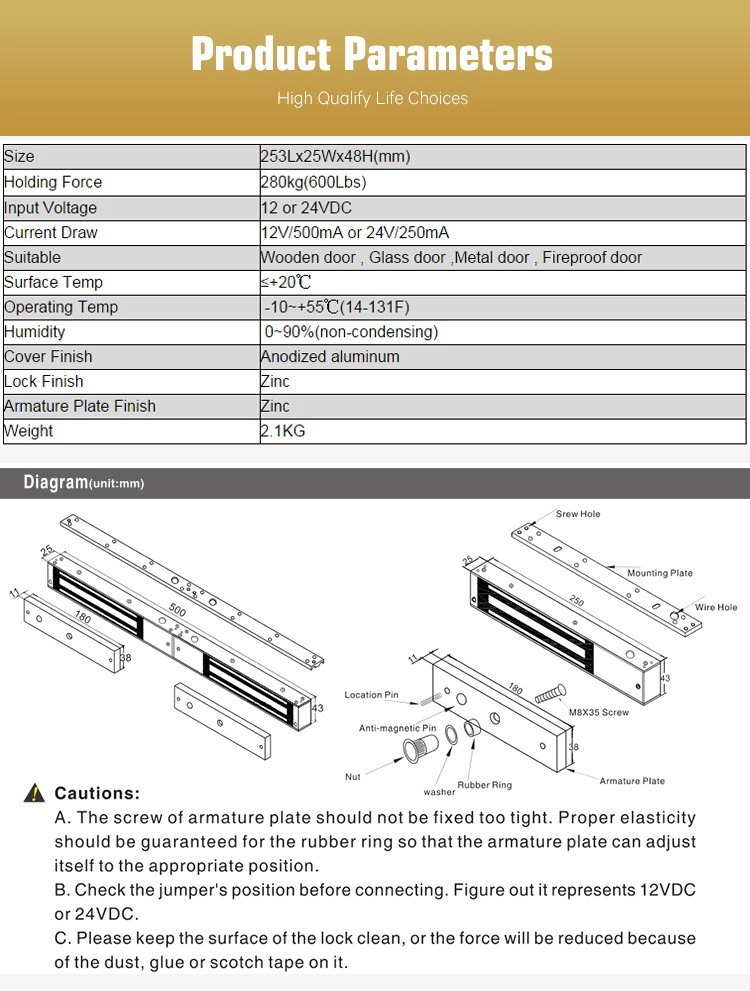

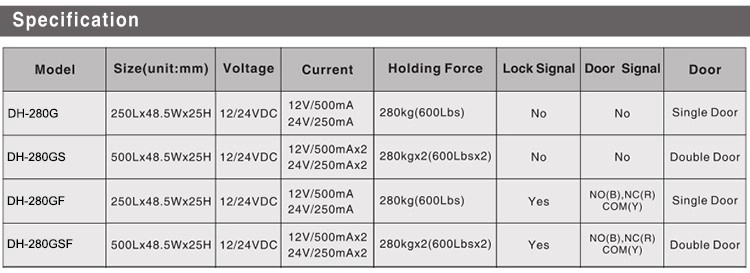

Technical Specification of electro magnetic lock  :

Working Voltage：DC12V/24V input
Working Current：500mA/250mA
Operating Temperature: -10~+55℃（14-131F）
Operating Humidity: 0-90%
Holding Force ：280kgs/600lbs
Weight：1.97kg
Size：253*25*48mm


Tag:magnetic lock, 600 lbs electromagnetic lock
Shenzhen UDOHOW Electronics Co., Limited

Tel:13602510930

Contact Person:Winnie Liang
